HX-1005
Feeler VMP-800 CNC Vertical Machining Centre
- X travel
- 800 mm
- Taper
- BT-40
- Spindle
- 10,000 rpm
- ATC
- 30, dual-arm ATC
Overview

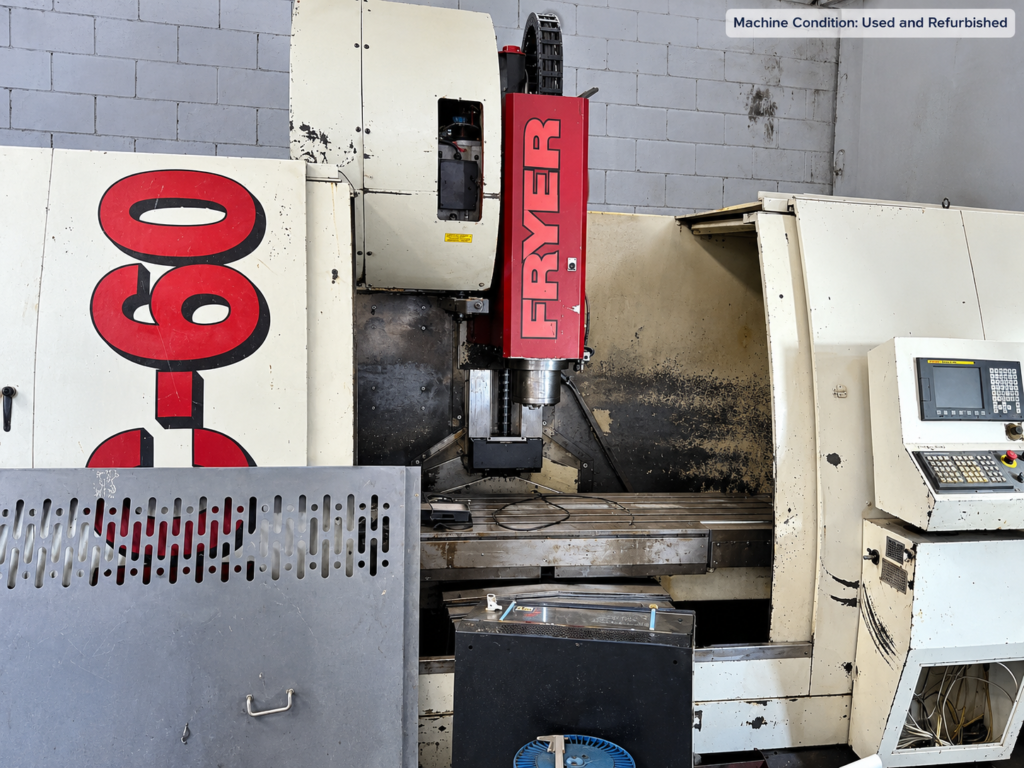

This Fryer MC-60 CNC vertical machining centre is offered for sale through Helix Engineering Solutions. The machine has been visited and photographed by a Helix engineer; full details are confirmed during your inspection visit and in our written quotation.
Highlights
- Axis Configuration: 3-Axis
- X-Axis Travel: 1,500 mm
- Spindle Taper / Tool Holder: BT-50 tool holder
- Automatic Tool Changer: Yes
- Hydraulic / Pneumatic System: Pneumatic
- Through-Spindle Coolant: Yes
Helix can arrange transport, installation and commissioning, and our on-site machining and retrofit teams can support the machine after delivery. Request a price or book an inspection to see it in person.
Technical Specifications
Typical value for this model – confirmed at inspection
Control System
| CNC Controller (Make / Series) | GE Fanuc 0i-MC |
|---|
Axes & Travels
| Axis Configuration | 3-Axis |
|---|---|
| X-Axis Travel | 1,500 mm |
| Y-Axis Travel | 762 mm (typical value, confirmed at inspection) |
| Z-Axis Travel | 711 mm (typical value, confirmed at inspection) |
Spindle
| Spindle Taper / Tool Holder | BT-50 tool holder |
|---|---|
| Max. Spindle Speed (RPM) | 8,500 rpm (typical value, confirmed at inspection) |
| Spindle Motor Power (kW) | 22 kW (30 HP) (typical value, confirmed at inspection) |
Tool Changer & Table
| Automatic Tool Changer (ATC) | Yes |
|---|---|
| No. of Tool Pockets | 24 (typical value, confirmed at inspection) |
| Table Size (L x W) | 1,702 x 610 mm (typical value, confirmed at inspection) |
| Max. Table Load (kg) | 2,040 kg (typical value, confirmed at inspection) |
Hydraulic / Pneumatic & Accessories
| Hydraulic / Pneumatic System | Pneumatic |
|---|---|
| Through-Spindle Coolant | Yes |
| Chip Conveyor | Yes |
Machine Size
| Machine Weight / Footprint (L x W x H) | 161 x 112 x 112 in |
|---|
HX-1007
Bridgeport 3020 VMC CNC Vertical Machining Centre
- X travel
- 800 mm
- Y travel
- 500 mm
- Taper
- BT-40
- Spindle
- 8,000 rpm
HX-1009
Leadwell V40 CNC Vertical Machining Centre
- X travel
- 1,000 mm
- Taper
- 40 taper
- Spindle
- 8,000 rpm
- ATC
- 24 + 1
HX-1014
Samsung CNC Turning Centre – Unit 1
- Chuck
- 8 inch
- Tailstock
- Yes
- Control
- FANUC Series 0i-TD
- Origin
- South Korea
How buying works
A clear process – no checkout, no surprises
Nothing is reserved or purchased online. Every request is reviewed by our sales team, who confirm availability and send a written quotation.
- 01
Discover
Browse by category, brand, controller or condition and open the full specification.
- 02
Select
Request a price for one item, or add several to your quote list with quantities.
- 03
Inspect
Book a visit to see the machine running before you decide.
- 04
Get your quotation
Helix reviews your request and sends a tailored commercial offer.
- 05
Delivery & support
Transport, installation, on-site machining and retrofit support on request.
