HX-1005
Feeler VMP-800 CNC Vertical Machining Centre
- X travel
- 800 mm
- Taper
- BT-40
- Spindle
- 10,000 rpm
- ATC
- 30, dual-arm ATC
Overview

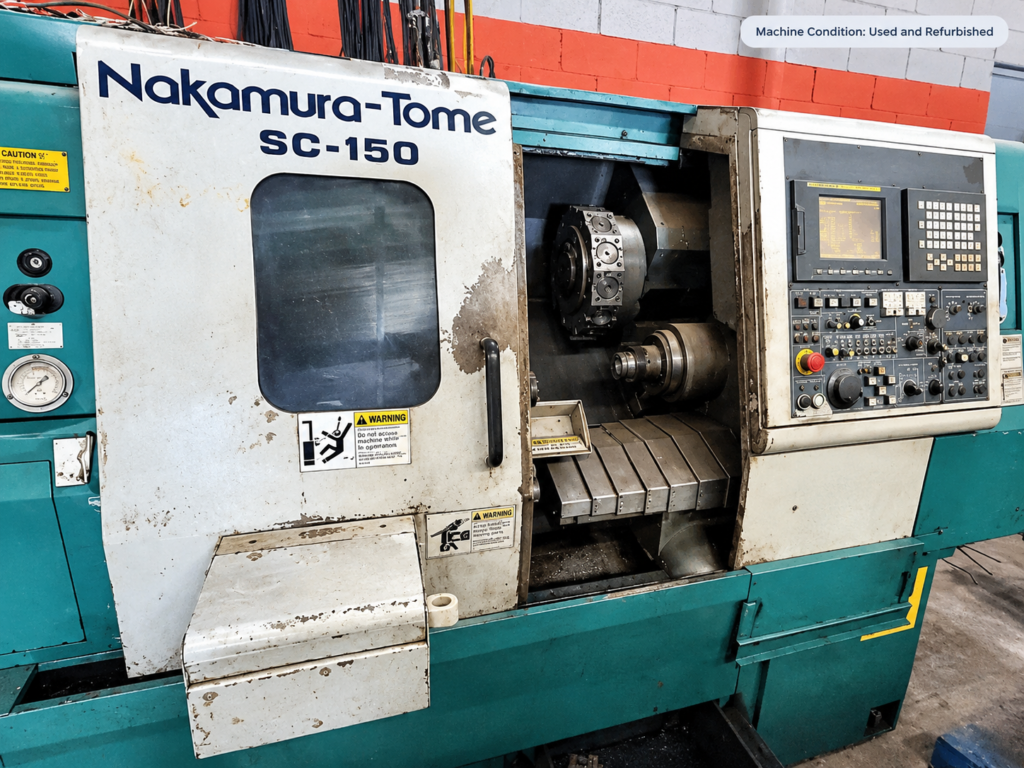

This Nakamura-Tome SC-150 CNC turning centre is offered for sale through Helix Engineering Solutions. The machine has been visited and photographed by a Helix engineer; full details are confirmed during your inspection visit and in our written quotation.
Highlights
- Chuck Size: 6 inch
- Sub-Spindle / Twin Spindle: Yes – sub-spindle (sub-spindle controls on panel)
- Turret Type: Servo turret
- Live Tooling: Yes
Helix can arrange transport, installation and commissioning, and our on-site machining and retrofit teams can support the machine after delivery. Request a price or book an inspection to see it in person.
Technical Specifications
Typical value for this model – confirmed at inspection
Control System

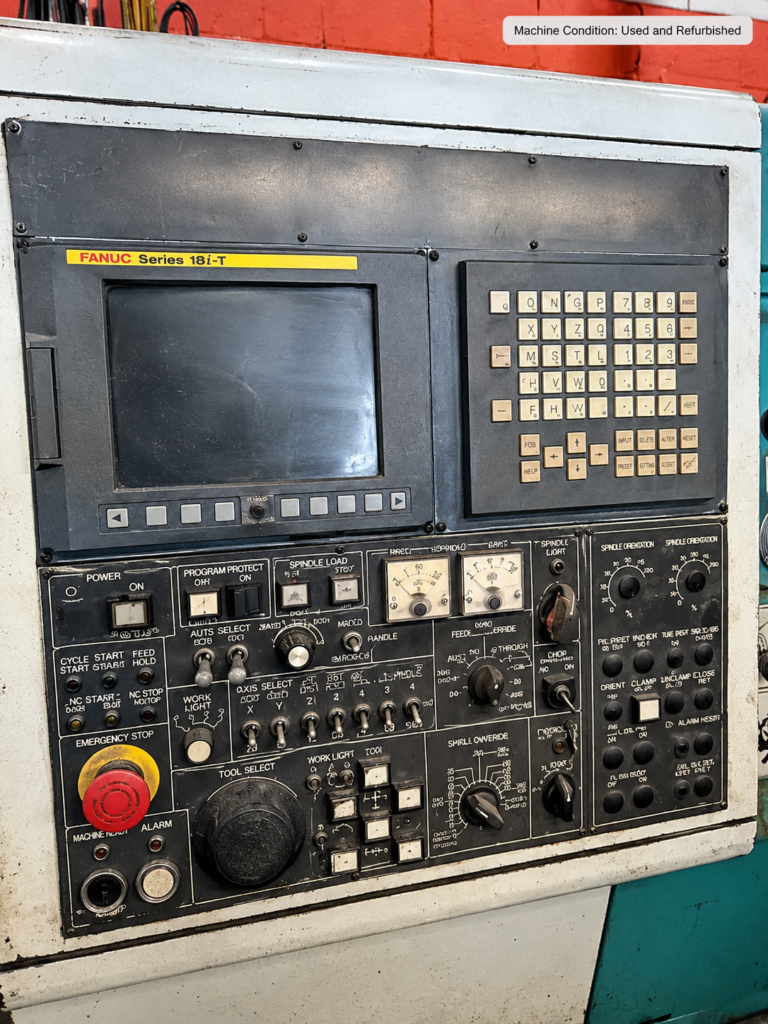

| CNC Controller (Make / Series) | FANUC Series 18i-T |
|---|
Axes & Capacity
| Axis Configuration | 3-Axis (X, Z, C) + sub-spindle (typical value, confirmed at inspection) |
|---|---|
| X-Axis Travel | 127 mm (typical value, confirmed at inspection) |
| Z-Axis Travel | 318 mm (typical value, confirmed at inspection) |
| Max. Swing Over Bed | 660 mm (typical value, confirmed at inspection) |
| Max. Turning Diameter | 216 mm (typical value, confirmed at inspection) |
| Max. Turning Length / Between Centres | 305 mm (typical value, confirmed at inspection) |
Spindle & Chuck
| Chuck Size | 6 inch |
|---|---|
| Spindle Bore / Bar Capacity | 51 mm (2") bar (typical value, confirmed at inspection) |
| Max. Spindle Speed (RPM) | 5,000 rpm (typical value, confirmed at inspection) |
| Spindle Motor Power (kW) | 7.5 / 5.6 kW (typical value, confirmed at inspection) |
| Sub-Spindle / Twin Spindle | Yes – sub-spindle (sub-spindle controls on panel) |
Turret & Tailstock
| Turret Type (Servo / Hydraulic) | Servo turret |
|---|---|
| No. of Turret Stations | 12 (typical value, confirmed at inspection) |
| Live Tooling | Yes |
HX-1007
Bridgeport 3020 VMC CNC Vertical Machining Centre
- X travel
- 800 mm
- Y travel
- 500 mm
- Taper
- BT-40
- Spindle
- 8,000 rpm
HX-1009
Leadwell V40 CNC Vertical Machining Centre
- X travel
- 1,000 mm
- Taper
- 40 taper
- Spindle
- 8,000 rpm
- ATC
- 24 + 1
HX-1014
Samsung CNC Turning Centre – Unit 1
- Chuck
- 8 inch
- Tailstock
- Yes
- Control
- FANUC Series 0i-TD
- Origin
- South Korea
How buying works
A clear process – no checkout, no surprises
Nothing is reserved or purchased online. Every request is reviewed by our sales team, who confirm availability and send a written quotation.
- 01
Discover
Browse by category, brand, controller or condition and open the full specification.
- 02
Select
Request a price for one item, or add several to your quote list with quantities.
- 03
Inspect
Book a visit to see the machine running before you decide.
- 04
Get your quotation
Helix reviews your request and sends a tailored commercial offer.
- 05
Delivery & support
Transport, installation, on-site machining and retrofit support on request.
