HX-1005
Feeler VMP-800 CNC Vertical Machining Centre
- X travel
- 800 mm
- Taper
- BT-40
- Spindle
- 10,000 rpm
- ATC
- 30, dual-arm ATC
Overview

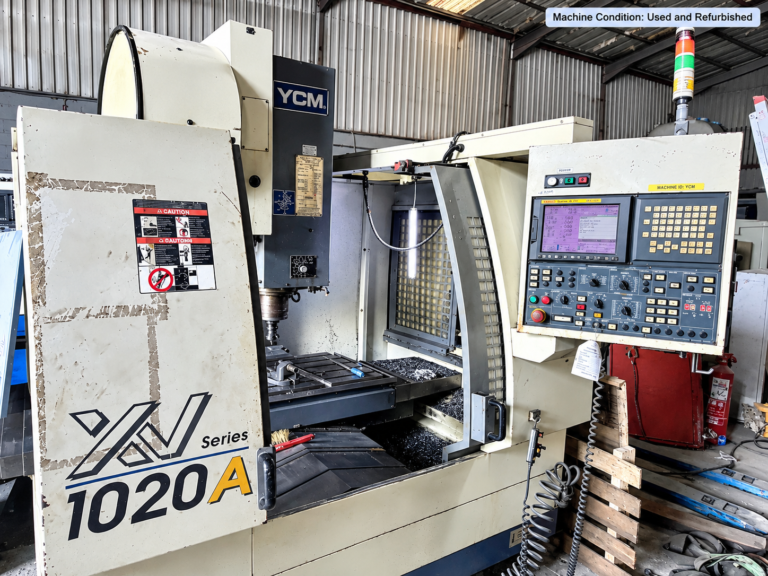

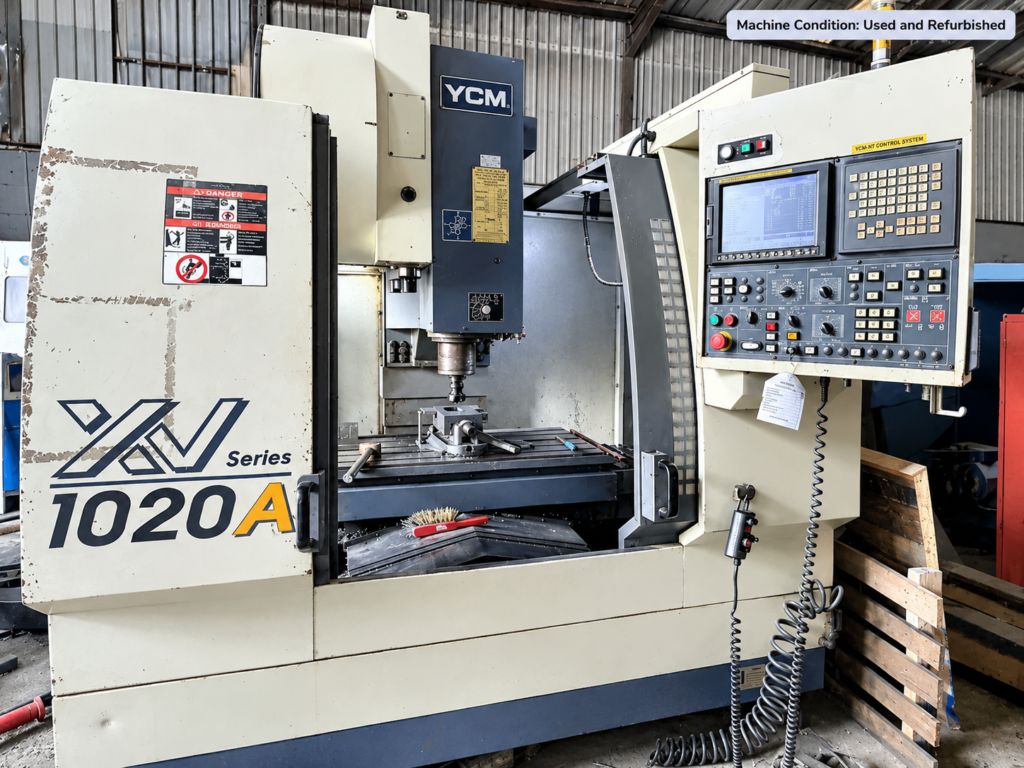

This YCM XV-1020A CNC vertical machining centre is offered for sale through Helix Engineering Solutions. The machine has been visited and photographed by a Helix engineer; full details are confirmed during your inspection visit and in our written quotation.
Highlights
- Axis Configuration: 3-Axis
- X-Axis Travel: 1,000 mm (1,020 mm per model)
- Automatic Tool Changer: Yes
Helix can arrange transport, installation and commissioning, and our on-site machining and retrofit teams can support the machine after delivery. Request a price or book an inspection to see it in person.
Technical Specifications
Typical value for this model – confirmed at inspection
Control System

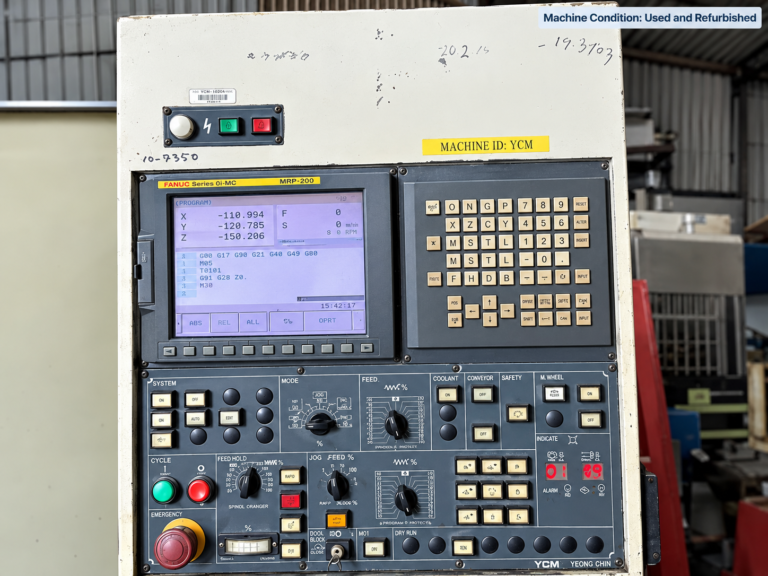

| CNC Controller (Make / Series) | Yeong Chin FANUC MXP-200i |
|---|
Axes & Travels
| Axis Configuration | 3-Axis |
|---|---|
| X-Axis Travel | 1,000 mm (1,020 mm per model) |
| Y-Axis Travel | 520 mm (typical value, confirmed at inspection) |
| Z-Axis Travel | 540 mm (typical value, confirmed at inspection) |
Spindle
| Spindle Taper / Tool Holder | 40 taper (typical value, confirmed at inspection) |
|---|---|
| Max. Spindle Speed (RPM) | 10,000 rpm (typical value, confirmed at inspection) |
| Spindle Motor Power (kW) | 11 kW (15 HP) (typical value, confirmed at inspection) |
Tool Changer & Table
| Automatic Tool Changer (ATC) | Yes |
|---|---|
| No. of Tool Pockets | 24 (typical value, confirmed at inspection) |
| Table Size (L x W) | 1,120 x 520 mm (typical value, confirmed at inspection) |
| Max. Table Load (kg) | 500 kg (typical value, confirmed at inspection) |
Hydraulic / Pneumatic & Accessories
| Chip Conveyor | Yes (conveyor keys on panel) (typical value, confirmed at inspection) |
|---|
HX-1007
Bridgeport 3020 VMC CNC Vertical Machining Centre
- X travel
- 800 mm
- Y travel
- 500 mm
- Taper
- BT-40
- Spindle
- 8,000 rpm
HX-1009
Leadwell V40 CNC Vertical Machining Centre
- X travel
- 1,000 mm
- Taper
- 40 taper
- Spindle
- 8,000 rpm
- ATC
- 24 + 1
HX-1014
Samsung CNC Turning Centre – Unit 1
- Chuck
- 8 inch
- Tailstock
- Yes
- Control
- FANUC Series 0i-TD
- Origin
- South Korea
